ETFE MEMBRANE ROOF SYSTEM

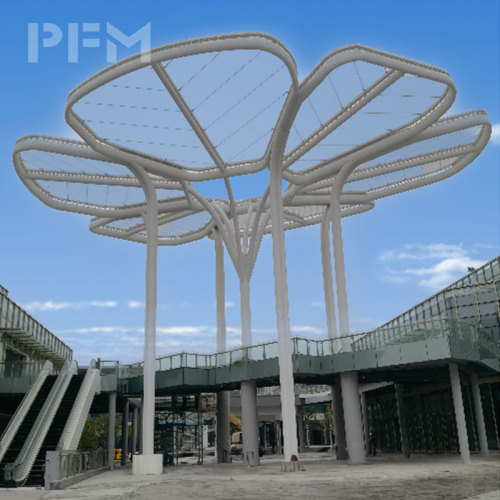

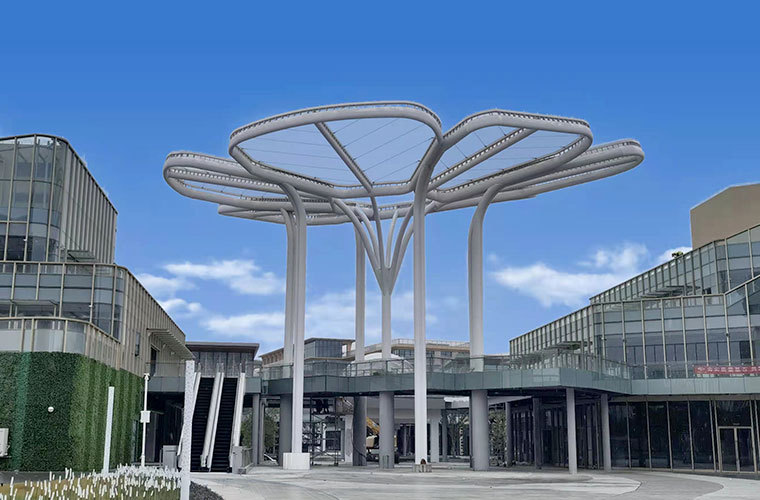

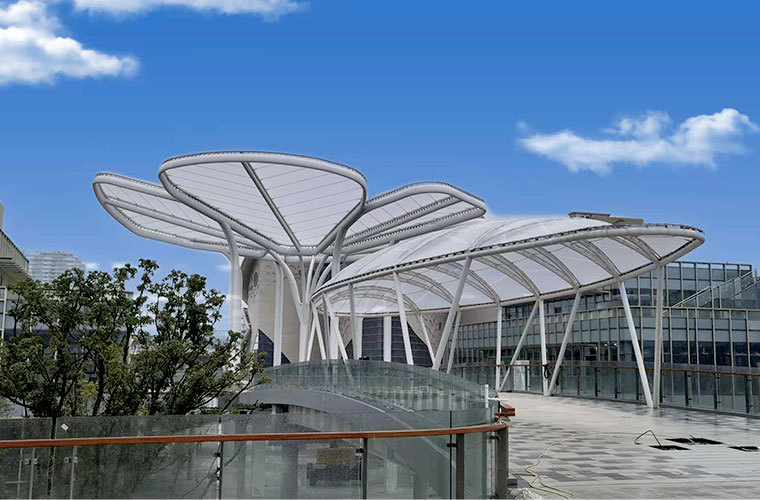

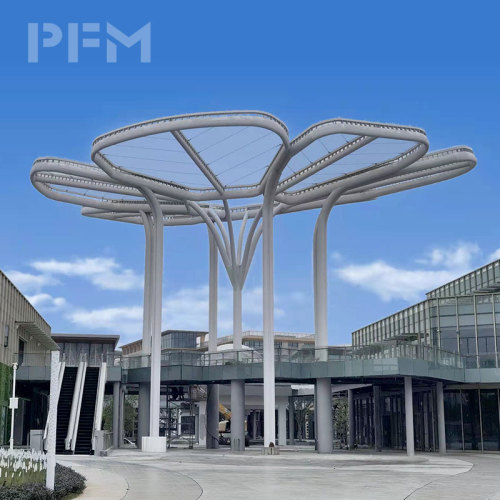

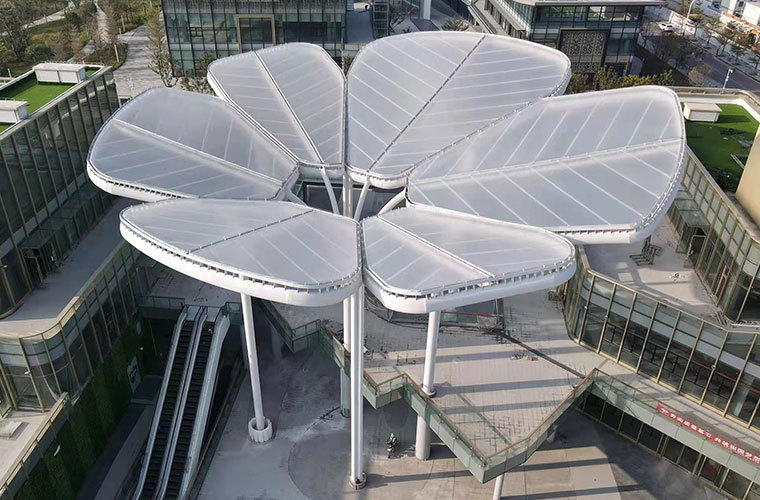

This project is part of the Guangzhou Macau Cooperation Zhuhai Hengqin Traditional Chinese Medicine Industrial Park project. The eaves of the membrane structure are 22 meters high, and the steel structure is made of elliptical customized steel pipes. The structure consists of six petals; The membrane material adopts German imported NOWOFOL frosted ETFE membrane material, with a simple structure and perfect shape, which is the finishing touch of the entire traditional Chinese medicine industry park.
-These project photos were provided by our partner TEXMOND.
Project Type | Membrane Roof Project |
Structural System | ETFE Membrane Structure + Elliptical Steel Frame |
Eaves Height | 22 m |
Roofing Materials | ETFE Membrane + Customized Elliptical Steel Pipes |
Design Service Life | 25–30 years (for membrane material) |
Seismic Resistance | Designed for 8-degree rating |
Structural Form | Six-petal Shaped Roof Structure |
Construction Period | Approximately 8–10 months |
Project Technical Solution
Structural System
The project adopts a hybrid structure combining ETFE membrane, cable, and customized elliptical steel frame. The six-petal design forms a lightweight, large-span roof, reducing structural weight and foundation loads while enhancing overall aesthetics.
Membrane (ETFE)
The roof uses ETFE membrane with high light transmission, UV resistance, and durability. Its frosted surface delivers soft, diffused daylight and excellent self-cleaning performance.
Cable System
The high-strength steel cable system works jointly with the ETFE membrane to ensure stable tension. This system offers excellent wind and seismic resistance, ensuring safety and durability under large-span configurations and diverse environmental conditions.
Project Highlights & Advantages
High-Performance ETFE
ETFE membrane delivers excellent light transmission, providing soft and natural indoor lighting. Its lightweight and flexible properties reduce structural load and maintenance costs, creating a comfortable and cost-efficient environment.
Long-Span & Structural Stability
Advanced structural design supports large-span ETFE membranes, ensuring superior safety and stability. The column-free interior provides flexible, open spaces suitable for a variety of uses.
Efficient Construction & BIM Management
Precise BIM-based planning and coordination streamline construction, minimize on-site errors, and accelerate project delivery, ensuring high-quality outcomes and predictable timelines.
Durability & Energy Efficiency
The ETFE membrane and supporting structure combination provides long-term durability and weather resistance. Its energy-efficient performance lowers operational costs while maintaining a sustainable and comfortable indoor environment.
Why Choose PFM
Specialized Solutions For Your Project
With rich international EPC experience, we offer PFM customized structural and roofing solutions tailored to each project's function, design, and architectural needs—ensuring efficient construction, unique appearance, and reliable performance.
| A Variety of Combination Schemes | ||||||||
| Combination Scheme | Structural Advantages | Functional Advantages | Typical Applications | |||||
| Space Frame | Metal Roof | Long-span, lightweight, cost-effective | Simple modern appearance | Stadiums, exhibition halls, warehouses | ||||
| Glass Roof | High stiffness, stable structure | Excellent daylighting, transparency | Transport hubs, atriums, lobbies | |||||
Truss | Metal Roof | Flexible design, adaptable | Good daylighting | Museums, malls, greenhouses | ||||
Glass Roof | High load capacity, durable | Transparent and open | Workshops, venues with hanging systems | |||||
Tensile Membrane | ETFE | Excellent durability, self-cleaning | Soft diffuse light | Stadium roofs, exhibition canopies | ||||
PTFE | Ultra-lightweight, flexible, 90% transparency | Unique shapes, visually iconic | Stadium facades, atrium roofs, eco-greenhouses | |||||
steel structure | Metal Roof | Mature technology, reliable and strong | Industrial, modern appearance | Offices, factories, schools | ||||
Latticed Shell | Glass Skylight | High rigidity, large span | Abundant natural light, modern minimalist design | Commercial plazas, shopping centers | ||||
Other Customizable Parameters | ||||||||
Span Range | From 30 to 200 meters, tailored to specific project requirements. | |||||||
Seismic Rating | Designed to meet seismic intensity levels from 6 to 9. | |||||||
Material Options | Including Q235/Q355 structural steel, ETFE membrane, weathering steel, and more. | |||||||
Sustainable Design | Compliant with green building standards, featuring energy-efficient roofing to reduce energy consumption. | |||||||
Construction Method | Modular prefabrication to shorten construction time and reduce on-site risks. | |||||||
Our Supply Capacity
Design Capability
A professional structural design team skilled in complex spatial modeling, structural analysis, and optimized design, ensuring the roofing system is safe, visually appealing, and cost-effective.
Procurement Capability
Long-term partnerships with top manufacturers of steel structures and roofing systems enable flexible material and system selection, guaranteeing both quality and delivery timelines.
Construction Capability
An experienced international engineering team specializes in large-span roof structures and systematic installation, ensuring high-standard, on-time project delivery.
Through an integrated Design–Procurement–Construction (DPC) supply model, PFM delivers stable and reliable turnkey roofing solutions—minimizing risk and reducing overall costs for clients.
