PTFE Membrane Stadium Roof System
- Model
- PTFE Membrane Stadium Roof System
Item specifics
- Type
- Stadium Roofing Project
- Structural System
- Tensile Membrane Structure + Cable System
- Roof Span
- 45 m
- Roofing Materials
- PTFE Membrane + High-Strength Steel Cables
- Design Service Life
- 25–30 years (for membrane material)
- Seismic Resistance
- Designed for 8-degree rating
- Construction Period
- Approximately 8–10 months
Review
Description
Quick Details
ETFE MEMBRANE ROOF SYSTEM
(SPECIALIZED FOR STADIUMS)

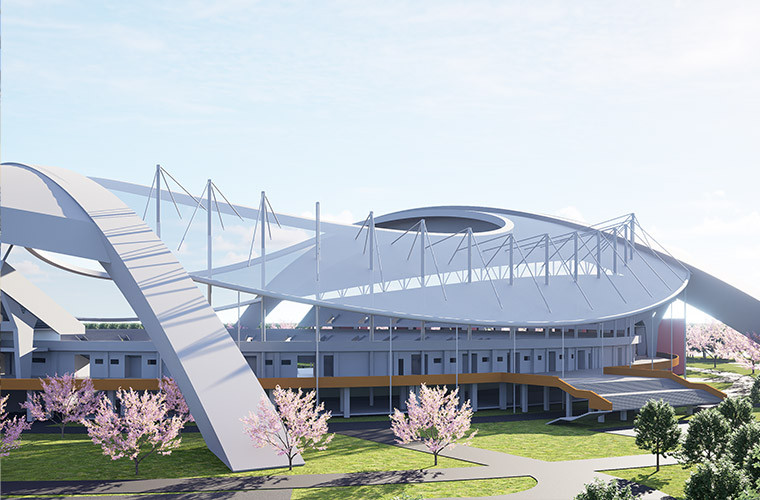

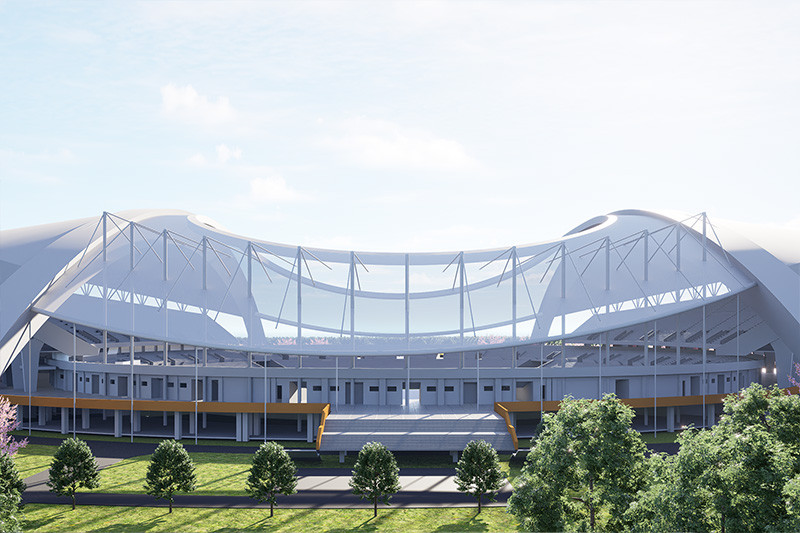

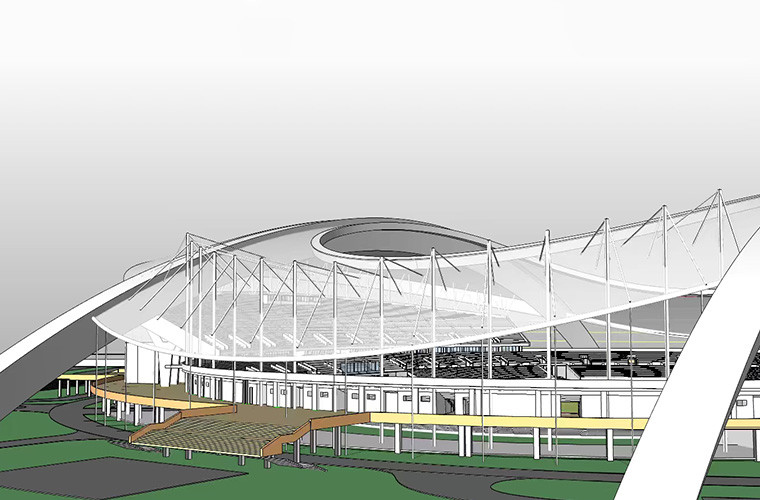

The project is a large-scale stadium roofing development located in Conakry, Guinea. It adopts a modern tensile membrane structure system, integrating steel cables with a supporting framework to achieve an ultra-large-span roof. The membrane structure not only provides shade and weather protection but also creates a light and open spatial atmosphere. Its distinctive form and dynamic curved surfaces give the stadium a striking identity, making it a landmark feature of the city’s architectural landscape.
Project Type | Stadium Roofing Project |
Structural System | Tensile Membrane Structure + Cable System |
Roof Span | 45 m |
Roofing Materials | PTFE Membrane + High-Strength Steel Cables |
Design Service Life | 25–30 years (for membrane material) |
Seismic Resistance | Designed for 8-degree rating |
Construction Period | Approximately 8–10 months |
Project Technical Solution
Structural System

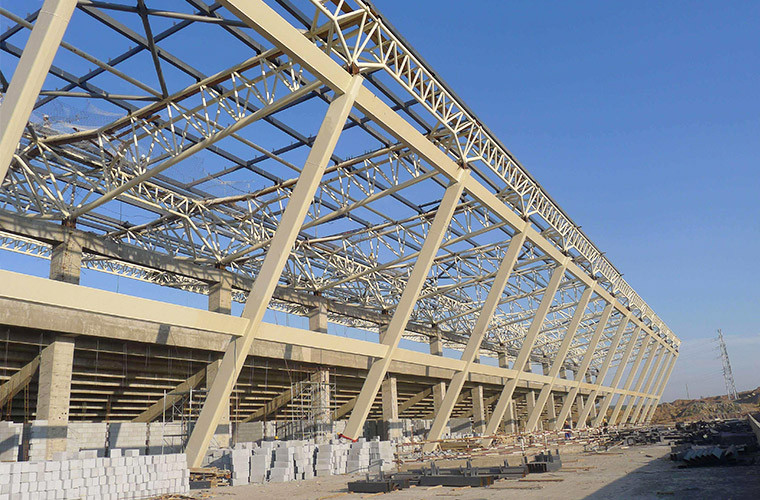

The project adopts a Tensile Membrane + Cable + Main Steel Structure hybrid system. The cable-membrane system works collaboratively to achieve a lightweight, large-span roof. The overall structure weighs only 1/10–1/5 of a traditional roof, effectively reducing foundation load and construction costs.

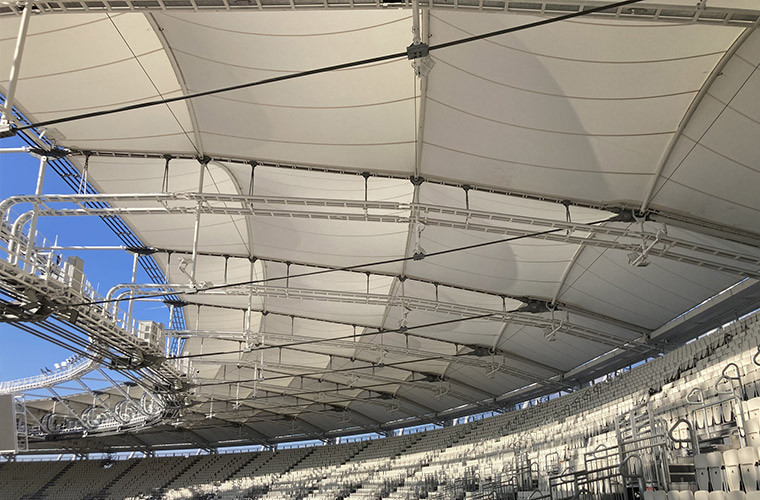

Membrane (PTFE)
Features a high light transmittance of 8–12%, allowing soft natural light inside. It also provides excellent UV resistance, weather durability, and self-cleaning ability, significantly reducing long-term maintenance.
Cable System
Made of high-strength galvanized steel cables, ensuring reliable tension and structural stability for safe performance under large spans and complex climatic conditions.
Project Highlights & Advantages
Iconic Architectural Appearance
The membrane structure’s unique curved form combined with dynamic light and shadow effects gives the stadium a distinctive identity, making it a city landmark.
Lightweight Large Span
The ultra-large-span roof minimizes internal columns, providing an open viewing space that meets the needs of sports events and other activities.
Long Service Life & Low Maintenance
PTFE membranes last much longer than PVC. With only regular cleaning and inspection, they ensure stadium longevity and reduce operational costs.
High Safety Performance
Designed for large-span spaces, PTFE membranes are strong, tear-resistant, waterproof, and fire-retardant, ensuring safety under wind and rain loads.
Durable & UV-Resistant
PTFE membranes resist UV damage, whiten within 30 days, and maintain a clean, bright appearance for over 25 years, ideal for high-UV environments.
Why Choose PFM
Specialized Solutions For Your Project
With rich international EPC experience, we offer PFM customized structural and roofing solutions tailored to each project's function, design, and architectural needs—ensuring efficient construction, unique appearance, and reliable performance.
| A Variety of Combination Schemes | ||||
| Combination Scheme | Advantages | Application | ||
| Space Frame | Metal Roof | Cost-effective, efficient, long-span | Stadiums, exhibition halls, warehouses | |
| Glass Roof | Long-span, excellent natural lighting | Transport hubs, commercial atriums, lobbies | ||
Truss | Metal Roof | Flexible design, good daylighting | Museums, shopping malls, greenhouses | |
Glass Roof | High load capacity, strong and stable | Heavy-duty workshops, warehouses, venues with hanging systems | ||
Tensile Membrane | ETFE | Unique shape, visually striking | Stadium canopies, landmark building entrances | |
Glass Roof | Ultra-lightweight, translucent and energy-saving | Eco-greenhouses, high-end cultural and sports landmarks | ||
steel structure | Metal Roof | Proven technology, highly adaptable | Commercial buildings, offices, schools, traditional industrial facilities | |
Latticed Shell | Glass Skylight | Natural daylighting, aesthetically pleasing, and modern minimalist design. | Commercial Plazas, Large Shopping Centers | |
Other Customizable Parameters | ||||
Span Range | From 30 to 200 meters, tailored to specific project requirements. | |||
Seismic Rating | Designed to meet seismic intensity levels from 6 to 9. | |||
Material Options | Including Q235/Q355 structural steel, ETFE membrane, weathering steel, and more. | |||
Sustainable Design | Compliant with green building standards, featuring energy-efficient roofing to reduce energy consumption. | |||
Construction Method | Modular prefabrication to shorten construction time and reduce on-site risks. | |||
Our Supply Capacity
Design Capability
A professional structural design team skilled in complex spatial modeling, structural analysis, and optimized design, ensuring the roofing system is safe, visually appealing, and cost-effective.
Procurement Capability
Long-term partnerships with top manufacturers of steel structures and roofing systems enable flexible material and system selection, guaranteeing both quality and delivery timelines.
Construction Capability
An experienced international engineering team specializes in large-span roof structures and systematic installation, ensuring high-standard, on-time project delivery.
Through an integrated Design–Procurement–Construction (DPC) supply model, PFM delivers stable and reliable turnkey roofing solutions—minimizing risk and reducing overall costs for clients.
