ETFE膜材屋面
Item specifics
- Type
- Spatial Grid Structure
- Steel Grade
- Q355B / Q420C (GB/T1591)

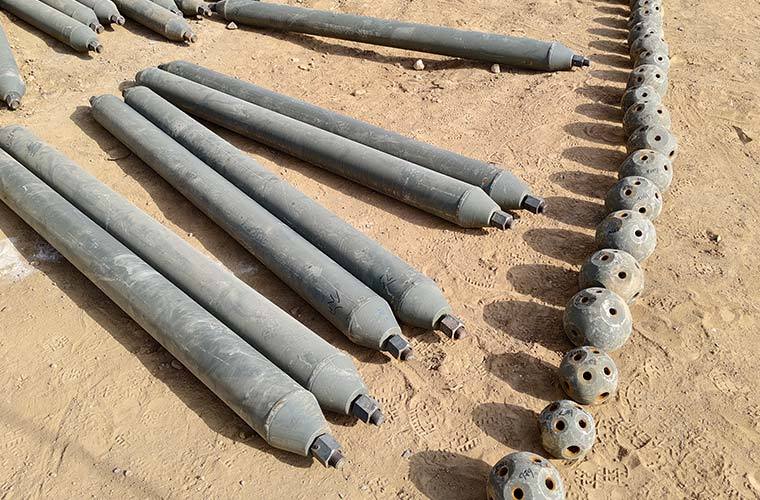

- Bolted ball joints
- GB/T 1231-2006
- Surface treatment
- Hot-dip galvanizing (≥80μm) or fluorocarbon coatin
- Node types
- Bolted ball / Welded ball / Intersecting joints
- Member specifications
- Φ48–Φ325mm seamless steel pipes
Review
Description
Quick Details
ETFE MEMBRANE ROOF SYSTEM
(SPECIALIZED FOR STADIUMS)
-----
MATERIAL COMPOSITION | |
Ethylene Tetrafluoroethylene Copolymer (ETFE), thickness 0.05–0.25 mm | |
ITEM | VALUE |
Density | 1.75 g/cm³ |
Melting Point | 265°C |
Light Transmittance | 90–95% |
Fire Rating | Class B1 (GB8624-2012) |
MECHANICAL PROPERTIES | |
Tensile Strength | ≥50 MPa (longitudinal/transverse) |
Elongation at Break | ≥300% |
ENVIRONMENTAL ADAPTABILITY | |
Weather Resistance | Stable from -200°C to +150°C |
UV Blocking Rate | >99% |
Application Scenarios | |
Stadiums, swimming halls, training centers, and other large-span buildings. | |

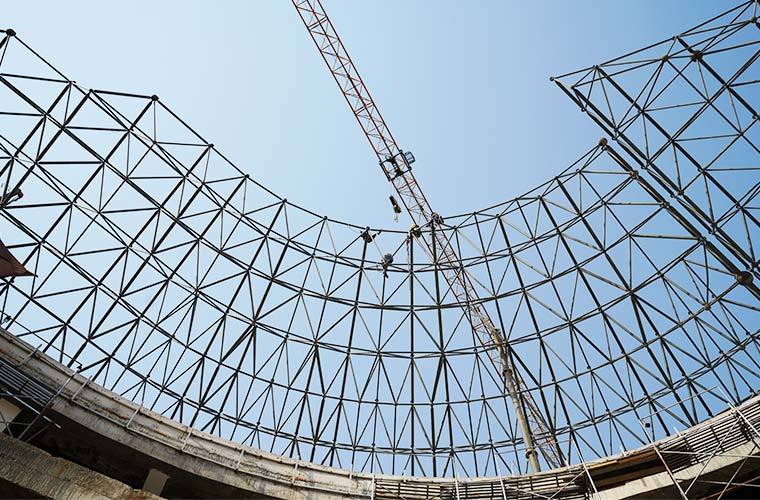

CORE ADVANTAGES OF SPACE GRID STRUCTURES
Ultra-Light & Highly Transparent
Only 1% the weight of glass, with up to 95% light transmittance.
No need for artificial lighting during the day—spaces remain bright and open. The extremely lightweight material enables large-span structures without visual or spatial heaviness.
High Durability
25–30 year lifespan with excellent UV resistance.
No need for frequent replacement. Stable performance under sun, rain, and outdoor conditions offers peace of mind.
Self-Cleaning & Eco-Friendly
Smooth surface repels dust and is cleaned naturally by rain.
Minimal maintenance is required, keeping the roof clear and bright year-round.
Flexible Design
Supports air cushions, single-layer, or multi-layer tensile systems.
Ideal for large, column-free spaces like stadiums or arenas, and allows for creative, modern architectural forms.
Supply Capacity
Production Capacity
Annual output: 500,000 m²
Supports customized dimensions (maximum single-panel width: 2.5m):
Customization Options
| ITEM | PARAMETER | ||
| Color | Transparent / Milky White / Blue / Custom Printed Patterns | ||
| Structure Type | Single-layer Membrane / Double-layer Cushion / Triple-layer Cushion | ||
Inventory & Response Time
Standard models: 15-day delivery
Urgent orders: 7-day response time
Project References

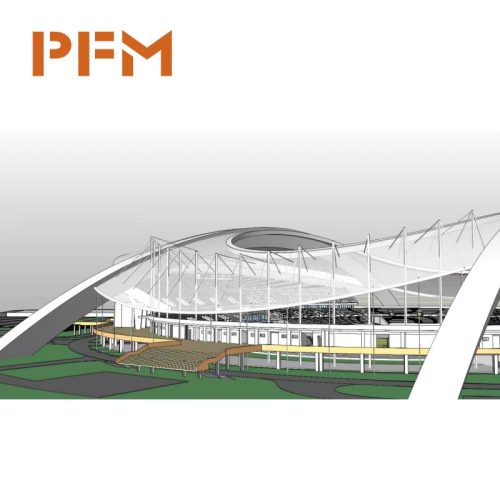

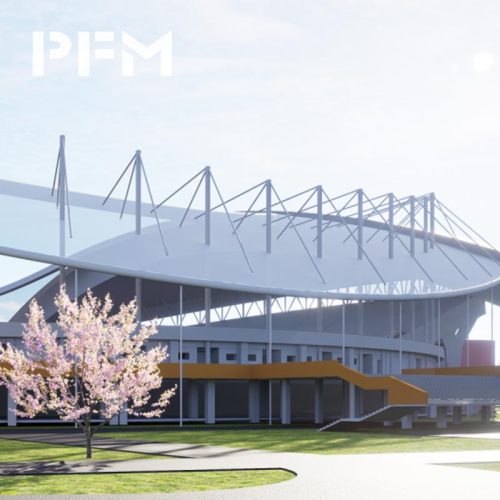

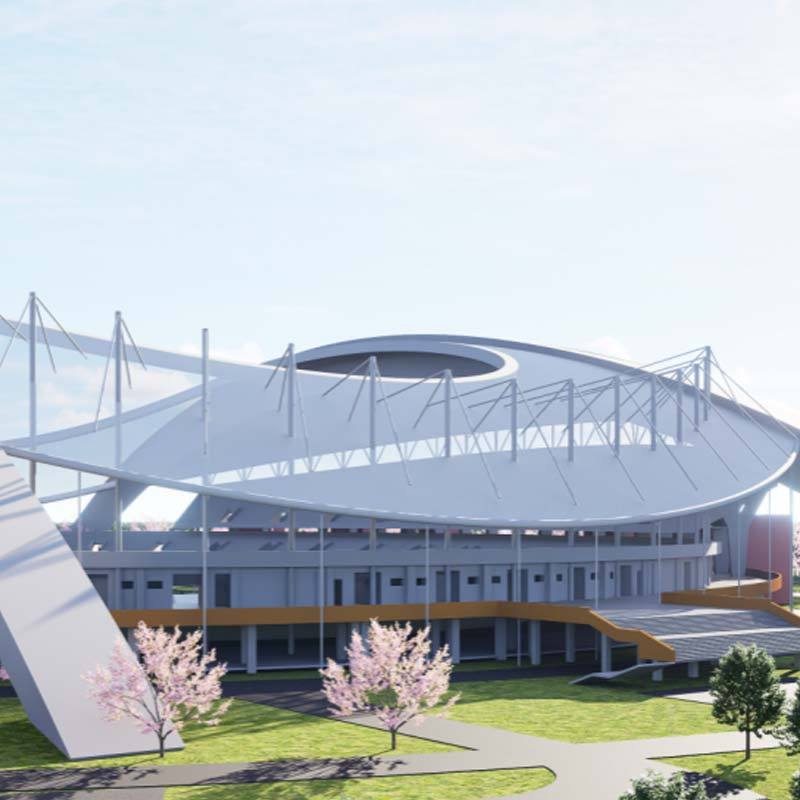

Guinea National Stadium
Delivery & Support
Logistics Support
Domestic: Professional dust-proof packaging + temperature-controlled transportation
International: Air or sea shipping (EXW/FOB terms available)

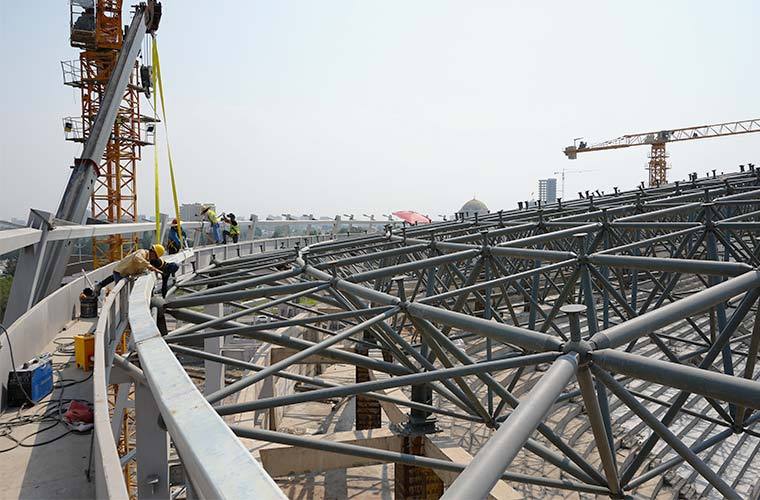

Installation Support
Structural calculation reports and wind load analysis provided

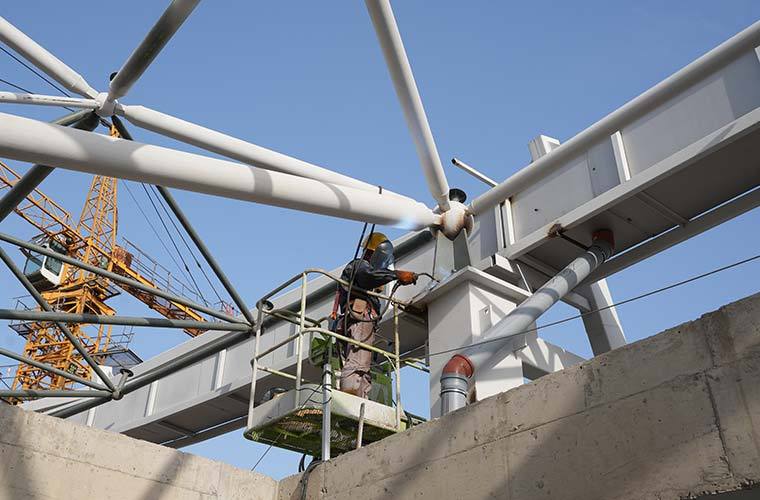

On-site installation guidance by a professional construction team
After-Sales Commitment
8-year warranty (covering materials and air cushion system) and lifetime maintenance
Specialized Solutions
| Composite Systems | Innovative Technologies | |||||
| Truss + Metal Roofing (Basic Type) | + | Intelligent Pre-Cambering Technology (to offset load-induced deformation) | ||||
| Truss + Glass Skylight (Translucent Type) | Local Reinforcement with Fiber-Reinforced Polymer (FRP) | |||||
| Truss + Retractable Mechanism (Movable Roof) | ||||||
